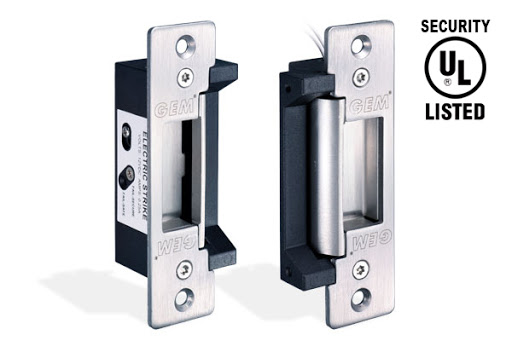

The GK300 series electric strikes can be used on either 12
or 24 VDC, and the GK300 series electric strikes are easy
changeable between fail-safe and fail-secure in the field.
Therefore, with special designed mechanism, these electric
strikes are ideally suited and meet the varying needs of our
customers.
The GK300 series electric strikes (ANSI-sized) are designed
to use with locksets (ex. spring latch), whose Max. latch throw
is 15mm for inswing doors. The units are designed to be used
using with on most hollow metal frames and aluminum frames.
Stainless steel plate ensures strength and long life.
Specification
Operating Voltage: 12/24VDC
Current Draw: 0.25 A/12VDC; 0.15 A/24 VDC
(at temperature 20ºC)
Operating Temperature: -10ºC~45ºC
Humidity: 0~95% non-condensing.
Material: Stainless Steel Faceplate , Aluminum Alloy Case
Tested over 1,000,000 cycles.
Net Weight: GK300-1224: 238g
