| Model | JA-N6209 | |
| Video input | Video input | 9CH 720P/960P/1080P/3MP/5MP |
| Network video bandwidth | 70Mbps | |
| Audio and video output
|
HDMI output | 1 CH，HDMI interface；resolution：2K/30Hz; |
| VGA output | 1 CH，VGA interface；resolution：1920x1080P/60Hz | |
| Audio Output | 1 3.5mm headphone jack，Support HDMI audio output | |
| Video and Audio coding decoding spec | Video compression standard | Standard H.265, H.264 |
| Playback | 9ch 1080P@25fps IPC/4ch 1080P playback
9ch 3MP@15fps IPC/4ch 3MP playback 9ch 5MP@25fps IPC/1ch 5MP playback |
|
| Video encoding resolution | 720P,960P,1080P,3MP,5MP video encoding | |
| Stream type | Audio and video stream / video stream, support variable stream (VBR) / fixed stream (CBR) | |
| Audio compression standard | G.711 | |
| Record Management | Record mode | Manual recording, timing recording, motion detection recording |
| Playback mode | Regular playback | |
| Backup mode | USB backup and network backup, Backup by time | |
| HDD | Storage type | Support 1 SATA interface |
| Storage capacity | Each interface supports a hard disk with a maximum capacity of 6TB | |
| External interface
|
Network interface | 1 RJ45 100M adaptive Ethernet port |
| USB interface | 2 USB2.0 Interface | |
| Network Management | Network Protocol | UPnP、SNMP、NTP、SADP、SMTP、PPPoE、DHCP |
| Others
|
Power input | DC +12V |
| Consumption(excluding HDD） | ≤15W | |
| Operating temperature | -10℃–＋55℃ | |
| Working humidity | 10％–90％ | |
| Size | 25.8x21x4.2cm | |
| Weight(excluding HDD) | ≤1Kg | |
Sale

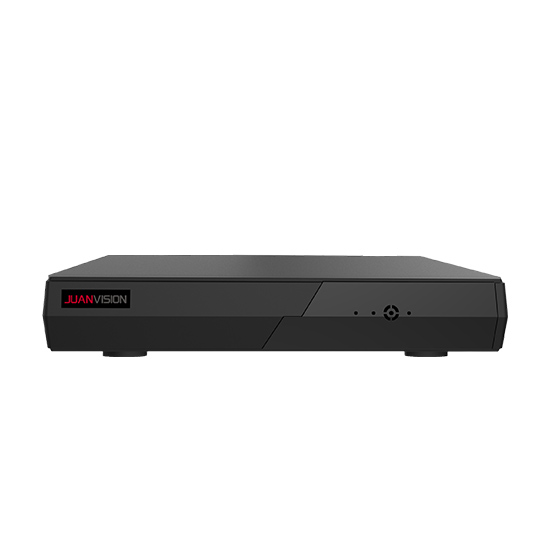

9CH NVR JA-N6209
* Support OTA；
* Support ONVIF；
* Network diagnosis function, one-click diagnosis of network faults；
* Support multi languages；
* H.264/H.265 compression standard；
* Support mobile phone, PC client multi-channel remote monitoring
Original price was: $599.00.$499.00Current price is: $499.00.
Buy Now
